Welland EZStor EPC-101 Single Port Power over eSata Kit - 1x SCE-200 adapter included

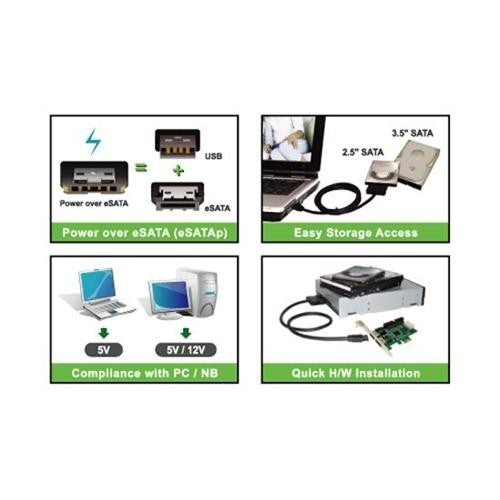

"Power over eSATA" (eSATAp) means that devices taking advantage of this specification no longer require a separate power supply when using eSATA, they draw power for the drive directly from the host system through the Power over eSATA cable/connector connection. A "Power over eSATA" connector is a hybrid of both eSATA and USB2.0, so that it supports USB A Type/eSATA/eSATAp devices.

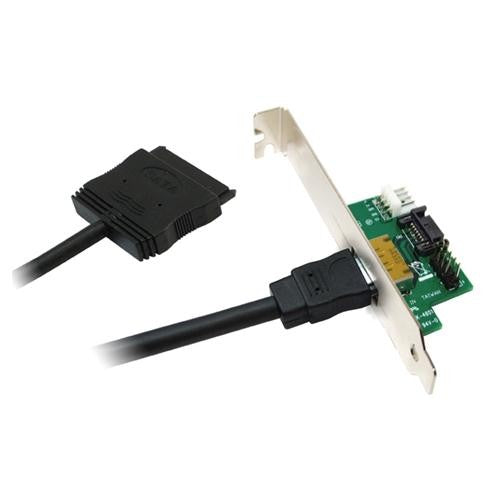

The Welland EZSTOR essential Power over eSATA kit consists of a single port eSATAp extension card for PC and an eSATAp cable for connecting to a SATA storage device. eSATAp ports and connectors combine eSATA with +5V and +12V power support, so when connecting to hard drives, no extra power supply is required. You can simply install the eSATAp kit in your PC system and enjoy stable and high speed eSATA performance.
|
External Port
|
1 x External Power over eSATA ( eSATAp) port
|
|
(Compatible with Power over eSATA / USB A Type / eSATA connector)
|
|
|
Form Factor
|
Standard 121mm Bracket
|
|
Bus Power Support
|
5V / 12V
|
|
Data Transfer Rates
|
USB2.0 up to 480 Mbps; eSATA up to 3Gbps |
| System Requirements | Windows 2000 / Server 2000 / XP / Vista / 7 , MAC 10.4.6 or later, Linux |
| Motherboard with a free USB pin header | |
|
Available 12V power cable (with small 4 pin power plug)
|
|
|
Drive Support
|
2.5" / 3.5" SATA HDD or 5.25" SATA ODD
|
| Connector Type | SATA Male (22 pin) to Power over eSATA (eSATAp) Male |
| Cable Length | 100cm (approximately 39 inches) |
| Transmission Rate | eSATA up to 3Gbps |
|
Hardware Requirements
|
Any PC or notebook with Power over eSATA ( eSATAp) port
Notebook with eSATAp built-in
|
